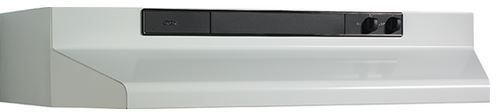

Broan® 30" Under The Cabinet Hood-White
At a Glance
Product Dimensions 6"h x 30"w x 17.5"d
Broan® 30" Under The Cabinet Hood-White with 190 cfm and infinitely adjustable fan-speed controlRead More
What We Offer
Get to know this product.
Product Overview
Deluxe performance in an economical package. The infinitely adjustable speed control allows you to set the hood speed for the perfect combination of ventilation and quiet. Additional Features
- 190 CFM, 7.5 Sone (3-14" x 10") or 220 CFM (7" round)– HVI Certified
- Easily installs as 7" round vertical discharge; 3-1/4" x 10" vertical discharge; 3-1/4" x 10" horizontal discharge or non-ducted (non-ducted filter sold separately)
- Rotary, infinitely adjustable fan-speed control
- 75-watt cooktop lighting with protective polymeric lens and two-level light control. Bulb not included
- Includes 3-1/4" x 10" damper/adapter and 7" round adapter
Useful Documents
Specifications
General Specs |
| Width (in.) | 30 |
| Height (in.) | 6 |
| Duct Size (in.) | 7 |
| Depth (in.) | 17.5 |
| Color | White |
| Positioning | Stationary |
| Color Finish Name | White |
| Range Hood Type | Under Cabinet |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 30 |
| Maximum CFM | 220 |
Construction |
| Chimney: | Fixed |
Dimensions |
| Max Height Above Cooktop: | 18 |
Display |
| Controls: | Mechanical |
General Features |
| Filter Type: | Dishwasher Safe Aluminum |
Other |
| Number of Lights: | 1 |
| Settings: | Variable Speed |
| Air Mover Type(s): | Fan |
| Sones (Noise Level) Rating: | 7.5 |
Proposition 65 Warning for California Residents
